Precast Compound Wall
Panel-and-column boundary walls in plain and designer finishes, 6 ft to 10 ft high.
Division 02 · Manufacturing · Supply · Installation
Precast walls & drains, built to last.
Compound walls, heavy wall panels, U-drains and box culverts cast at our Palsana factory — delivered and installed at your site.

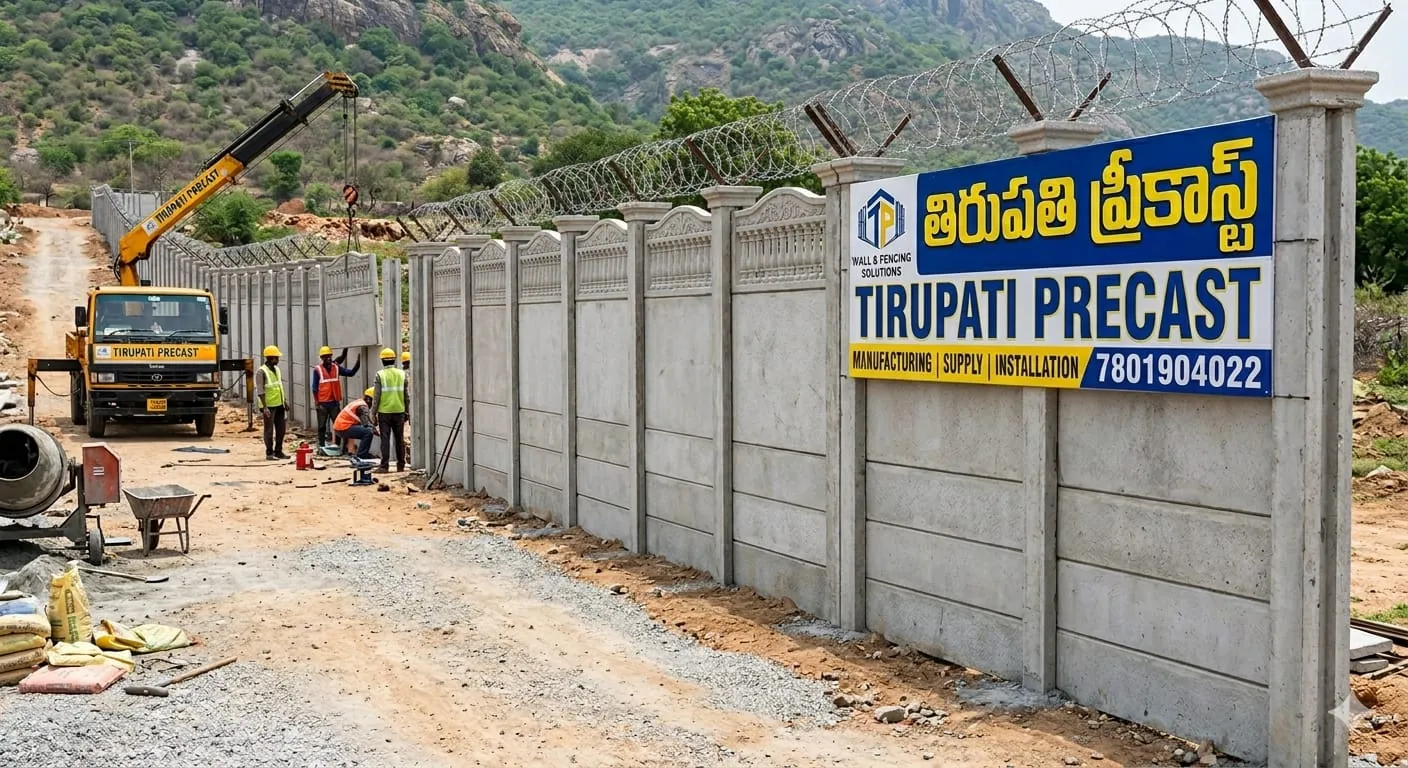

Precast compound wall
Panel-and-column walls, 6 ft to 10 ft high.
Each wall is built from slim pre-stressed panels that slide between grooved columns. The result is a straight, uniform boundary that goes up far faster than brickwork.
| Panel (cement set) length | 7 ft (2100 mm) |
|---|---|
| Panel height | 1 ft (300 mm) |
| Panel thickness | 2 in (50 mm) |
| Panel reinforcement | 4 pieces of 3 mm PCC steel per set, with stressing system |
| Column size | 6 × 6 in (150 × 150 mm) |
| Column reinforcement | 7 pieces of 3 mm PCC steel, with stressing system |
| Wall height | Available from 6 ft to 10 ft |
| Wall length | As per customer requirement |
Our precast range
Walls, drains and culverts from one factory.
Sizes are made to your drawing — call us for the size chart and a quote.
Single Panel Heavy Wall
One-piece heavy wall panels for strong, fast boundary and retaining work.
Light U-Drain
Precast U-channel drains for storm-water lines in campuses, plots and roads.
Heavy U-Drain
Heavy-duty U-drains with covers for areas that carry vehicle loads.
Box Culvert
Precast box sections for road crossings and water passages.
How we work
We make it, bring it and put it up.
-
01
Manufacturing
Panels, columns and drains are cast at our factory in Palsana, Surat, with PCC steel and a stressing system.
-
02
Supply
Delivered to your site in the sizes and quantities your layout needs.
-
03
Installation
Our team erects columns and slides in the panels, or lays the drain line, to finish the job.
Why precast
Faster, cleaner, more uniform.
- Factory-cast panels — every section the same size and finish
- Quick installation with a small team and less site mess
- Pre-stressed PCC steel reinforcement in panels and columns
- Plain and designer panels for factories, farms, plots and campuses
- Drain lines in light and heavy sections, with box culverts for crossings
One call for machine and material
Planning a pour, a boundary wall or a tiling job?
Tell us about your site — we will reply with availability, sizes and the right product.
